Electric Hammer

Product Overview



Heavy-duty industrial electric hammers coordinate a pneumatic impact mechanism with a high-torque gear train to fracture and penetrate reinforced concrete, structural brick, and natural stone. Built for continuous operation on commercial construction and infrastructure job sites, these tools combine high-purity copper-wound stators, heat-treated alloy steel gearboxes, and multi-stage vibration isolation systems.




  • 26mm Cordless Rotary Hammer
    This 21V lithium electric hammer is a versatile and high-efficiency tool designed for both professional and home use. Equipped with a brushless motor, it offers powerful performance, low noise and...
    read more
  • 26mm Lightweight Rotary Hammer
    The 21V lithium electric hammer is a high-performance and durable tool designed for medium to heavy-duty tasks. Equipped with a 4.0Ah large-capacity battery, it provides long working time without...
    read more
  • 22mm Cordless Rotary Hammer
    This 21V lithium electric hammer is a reliable and efficient tool designed for medium-duty drilling and chiseling tasks. Equipped with a 4.0Ah large-capacity battery, it ensures long working time...
    read more

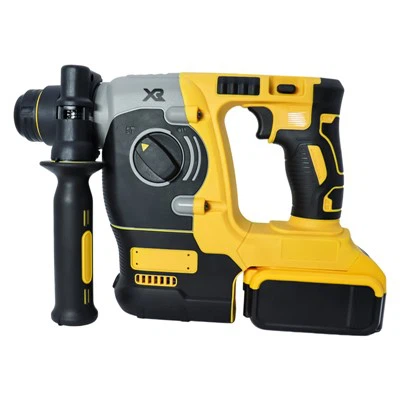

  • DeWalt Style Cordless Rotary Hammer
    The 21V lithium electric hammer is a practical and reliable tool designed for light to medium-duty drilling tasks. Equipped with a 5025 motor, it provides stable power output and efficient...
    read more
  • 26mm 3-Function Rotary Hammer
    This is a plug-in electric hammer focusing on high temperature resistance and high stability. It adopts a super-grade high temperature resistant copper wire motor that can withstand 220 degrees...
    read more
  • 220V Rotary Hammer with Oil Cap
    This is a plug-in electric hammer with complete configuration and strong practicality. With a rated input power of 800W, it has sufficient power and combines drilling and impact functions. It is...
    read more
  • 220V 3-Function Rotary Hammer
    This is a plug-in electric hammer that meets international standards and is suitable for various scenarios. It adopts SDS plus chuck design for quick bit change, with moderate body weight,...
    read more
  • 28mm 3-Function Rotary Hammer
    This is a plug-in electric hammer focusing on high power and high efficiency. With a rated input power of 850W, it has more sufficient power than similar products, stable impact force, adjustable...
    read more
  • 18V Cordless Rotary Hammer
    This 18V lithium electric hammer is a practical and cost-effective tool designed for daily light-duty drilling and chiseling tasks. Equipped with a 2.0Ah battery, it provides stable power supply...
    read more
  • 21V Cordless Rotary Hammer
    The 21V lithium electric hammer is a high-performance tool designed for heavy-duty drilling and chiseling tasks. Featuring a 5025 brushless high-speed motor, it delivers powerful and efficient...
    read more

Product Categories


Category

Typical Model Identifier

Technical Core Profile

Primary Industrial Application

SDS-Plus Rotary Hammers

EH-2601 / EH-3202

800W–1050W; 2.8J–4.5J EPTA; Capacity: 4–32 mm in concrete.

MEP core penetrations, ceiling anchor drops, light surface preparation.

SDS-Max Rotary Hammers

EH-4005 / EH-5201

1200W–1600W; 8.0J–14.0J EPTA; Capacity: 12–52 mm in concrete.

Structural rebar doweling, deep wall channeling, heavy foundation coring.

Demolition Hammers (Breakers)

DH-1000 / DH-1500

1500W–2000W; 25.0J–45.0J Impact Energy; Hex 30mm chuck.

Concrete slab fracture, road trenching, structural wall demolition.



Technical Specifications


Flagship 1500W Heavy-Duty SDS-Max Rotary Hammer (Model: EH-5201)

Technical Parameter

Specification Value

Testing Standard / Method

Rated Voltage / Frequency

220V–240V~ / 50Hz–60Hz (110V optional configuration)

IEC 60745-1 / EN 62841-1

Power Input

1500W (Class H insulated pure copper winding)

Electrical Dynamometer Load Test

Impact Energy (EPTA)

12.5 Joules per stroke

EPTA-Procedure 05/2009 measurement

No-Load Speed

300 – 600 RPM (Thumb-wheel variable control)

Optical Tachometer Verification

Impact Rate

1,800 – 2,900 BPM

Pneumatic Cylinder Pressure Analyzer

Tool Retainer / Chuck

SDS-Max heavy-duty quick-release mechanism

ISO 1174 Standard Gauge

Max Drilling Capacity (Solid Bit)

52 mm

Field Core Test in C30 Concrete

Max Drilling Capacity (Core Bit)

125 mm

Masonry Ring-Bit Evaluation

Net Weight

7.3 kg

Calibrated Industrial Platform Scale

Vibration Level (Chiseling)

11.2 m/s² (with active damping system)

ISO 28927-10 Acceleration Test



26mm Lightweight Rotary Hammer



Key Features

Pneumatic Impact Mechanism: Precision-machined 40Cr alloy steel pistons and cylinder sleeves transfer kinetic force directly to the drill bit while limiting internal thermal buildup.


Torque-Limiting Safety Clutch: Mechanical slip clutch disengages output rotation instantly if the drill bit binds in embedded rebar, safeguarding internal gears and the operator.


Magnesium-Aluminum Alloy Gear Housing: High-strength die-cast alloy shell maintains rigid structural alignment for internal gear trains while accelerating thermal dissipation under load.


Constant Speed Electronics: Closed-loop circuitry maintains under-load RPM and impact frequency when driving large-diameter bits through dense aggregate.


Dual-Mode Selector: Mechanical switch shifts between rotary hammer mode (rotation with impact) and hammer-only mode (chiseling and demolition).





Applications

Commercial Construction: Core drilling for pipe sleeves, electrical conduit runs, and structural anchor bolts in poured concrete frames.


Civil Infrastructure & Road Repair: Breaking asphalt layers, concrete expansion joints, and bridge deck preparation using hexagonal shank chisels.


Structural Renovation: Demolishing load-bearing brick walls, old concrete foundations, and aged ceramic tile beds.


Industrial Plant Maintenance: Heavy machinery anchor bolt setting, equipment base grouting preparation, and structural retrofitting.

22mm Cordless Rotary Hammer




OEM & ODM Customization Services


Contract manufacturing services are structured for tool brand owners, importers, and regional distributors requiring private-label or custom-engineered rotary and demolition hammers.

01/

Housing & Color Customization: Injection-molded PA6-GF30 (Nylon-Glass Fiber) body shells matched to specific RAL corporate color schemes. Logo integration via multi-color injection molds, pad printing, or laser etching on metal gear casings.

02/

Motor & Electrical Engineering: Stator and rotor lamination stack sizing and copper wire gauge adjustments to match target regional voltage profiles (e.g., 120V/60Hz UL-compliant or 230V/50Hz CE-compliant).

03/

Performance Tuning: Calibration of pneumatic cylinder stroke length and striker mass to modify impact energy ratings for specific target distribution tiers.

04/

Packaging & Accessories: Blow-molded HDPE carrying cases, custom accessory assortments (SDS-Max/Plus drill bits, point/flat chisels), translated user manuals, and barcoded retail cartons.

Quality Control & Assurance

26mm Cordless Rotary Hammer

Manufacturing uniformity is enforced through strict multi-stage verification protocols across our production lines:


Raw Material Inspection: Spectrometric analysis of incoming alloy steel bars (40Cr, 20CrMnTi) to verify carbon, chromium, and nickel composition prior to forging and gear hobbing.


Rotor & Stator Dynamic Balancing: Automated balancing equipment tests armature assemblies up to 18,000 RPM to eliminate mechanical imbalance and premature bearing wear.


Dimensional Metrology: Critical mechanical interfaces—including SDS chuck bores, cylinder inner diameters, and gear profiles—are verified using CMM (Coordinate Measuring Machines) accurate to 0.001 mm.


Full-Load Durability Testing: Randomly selected production units undergo continuous load endurance runs under simulated job-site operating cycles (50 hours non-stop operation at rated torque).


Electrical Safety & Insulation Testing: 100% of finished units undergo Hi-Pot dielectric strength testing (3750V isolation test) and earth continuity verification prior to packaging.



Global Export & Supply Support

220V 3-Function Rotary Hammer


Regulatory Compliance

Manufactured in conformity with CE (EMC/LVD), CB, RoHS, and ETL/UL standards. Complete compliance dossier and test reports available upon request.



Packaging Standards

Heavy-duty double-wall corrugated export cartons secured with plastic strapping and stretch film, designed to withstand multi-mode ocean or air transit.

220V 3-Function Rotary Hammer factory
22mm Cordless Rotary Hammer suppliers


Logistics & Lead Time

Standard production lead time is 30 to 45 days upon deposit confirmation. FOB, CIF, and DDP shipping arrangements are supported from major export ports.



Spare Parts Support

1% to 2% critical replacement components (carbon brushes, switch assemblies, O-ring seals, and gear sets) are supplied free of charge with bulk container orders to support initial after-sales maintenance.

22mm Cordless Rotary Hammer factory





Frequently Asked Questions



Q: What is the Minimum Order Quantity (MOQ) for OEM private-label electric hammers?

A: The standard MOQ for custom brand color injection, housing logo printing, and tailored color cartons is 500 units per model. For unbranded neutral packaging orders, lower trial quantities can be evaluated based on production scheduling.

Q: Are replacement parts and wear components readily available for after-sales service networks?

A: Yes. We maintain a complete bill of materials for all manufactured models and supply interchangeable wear parts—including carbon brushes, gear sets, piston rings, and switch triggers—as separate aftermarket SKUs to support distributor maintenance programs.

Q: What safety certifications do your electric hammers hold for North American and European markets?

A: Production lines comply with EN 62841-1 and EN 62841-2-6 (CE certification) for Europe, and equivalent UL/ETL electrical safety standards for North America. Test reports issued by accredited third-party laboratories (such as TÜV or SGS) are available for compliance filing.

Q: What are your standard payment terms for new B2B manufacturing contracts?

A: Standard commercial terms are 30% T/T deposit upon contract execution, with the remaining 70% balance payable against copy of the Bill of Lading (B/L) and factory inspection report. Irrevocable Letter of Credit (L/C) at sight is also accepted for qualified high-volume orders.



modular-1
Request a Quote

To obtain FOB/CIF pricing, technical data sheets, or to discuss custom OEM/ODM project requirements for electric hammers, please submit your specifications below:
Required Parameters: Target Model / Annual Volume / Destination Port / Customization Scope
Direct Inquiry Contact: [Insert B2B Sales Department Email / Inquiry Form Link]

As one of the most professional electric hammer manufacturers in China, we also support customized service. Please feel free to buy high quality electric hammer for sale here from our factory. Good service and punctual delivery are available.

cordless drill hammer, battery rotary hammer, 21V hammer drill
